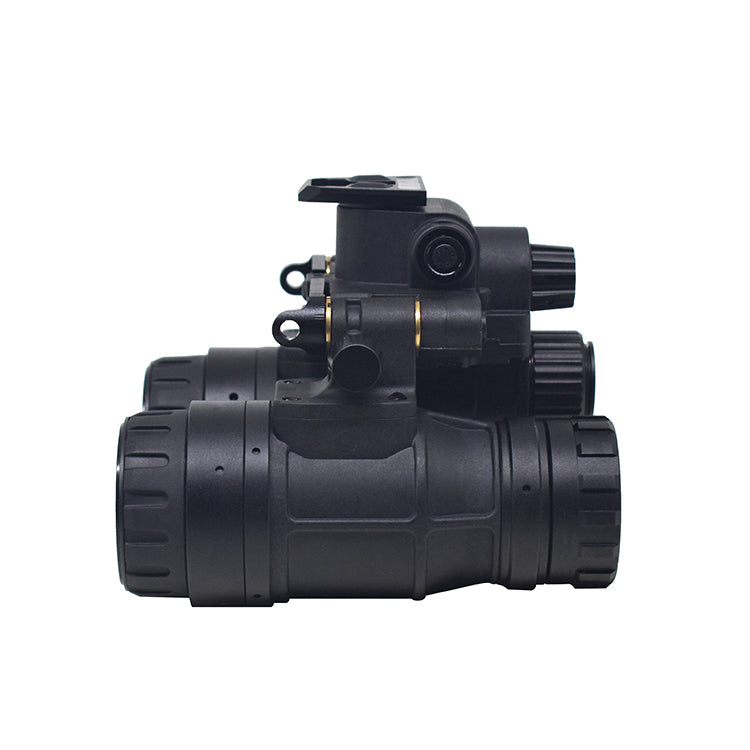

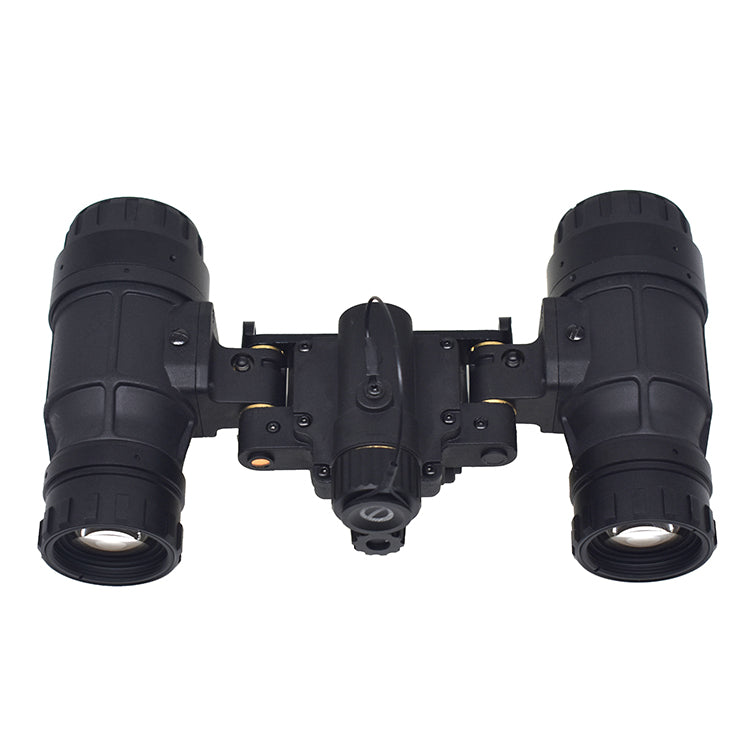

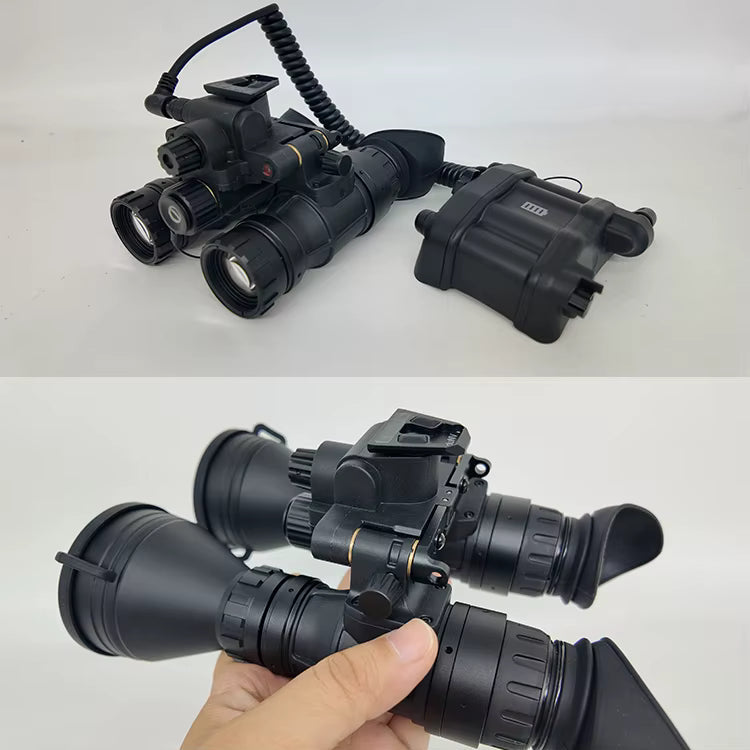

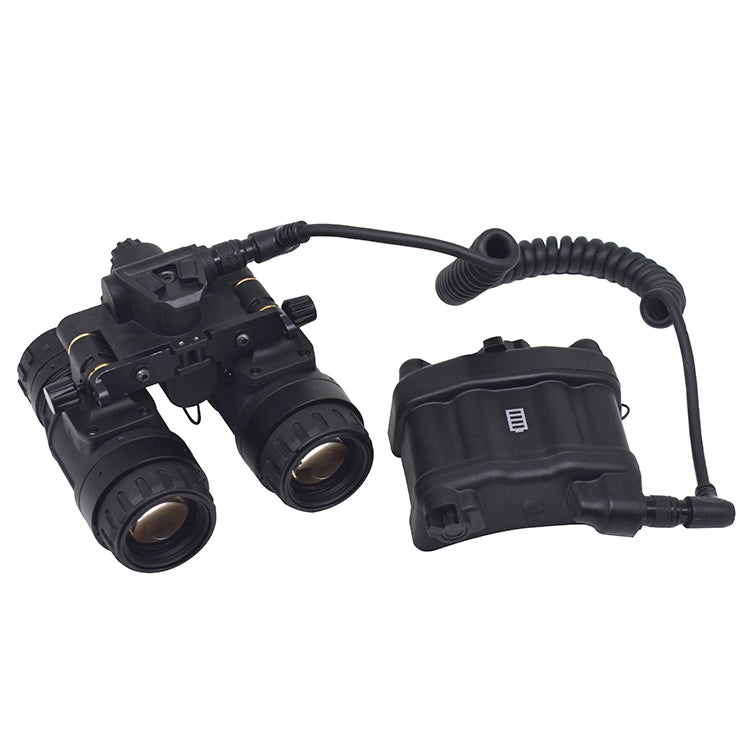

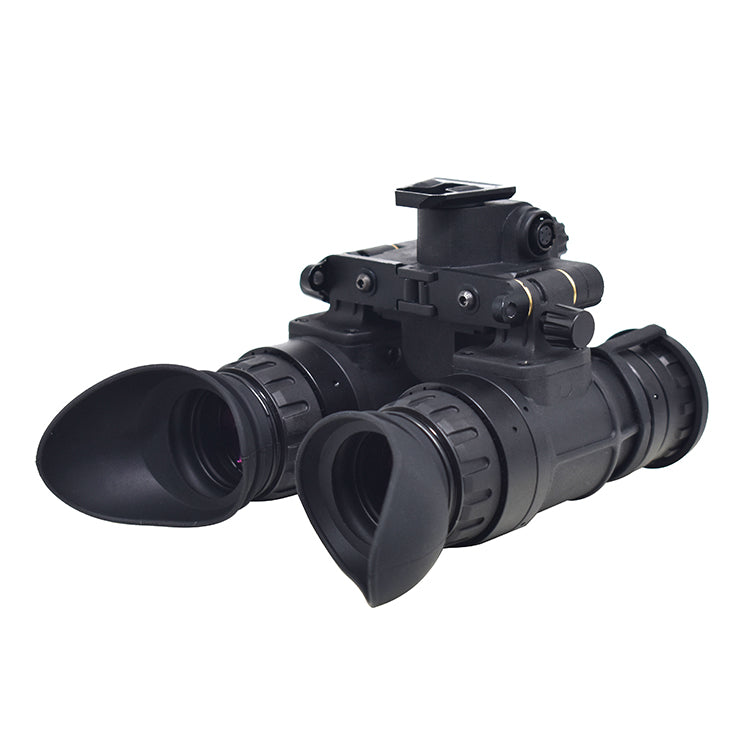

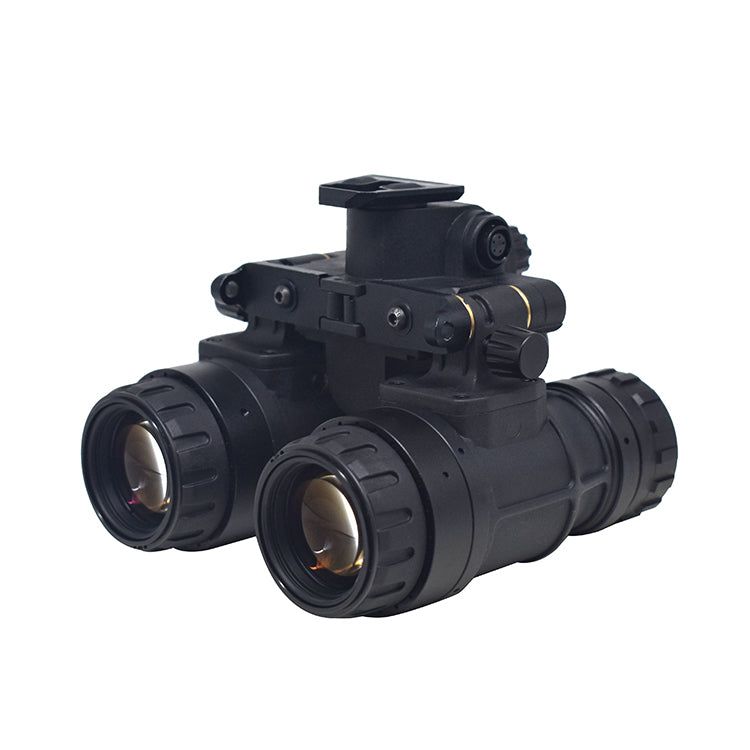

PVS-31 Autogate FOV 50° Night Vision Goggles

$4,199.95 USD

Options Green FOM1400 Non-Autogate Green FOM1600 Autogate Green FOM1800 Autogate Green FOM2000 Autogate White FOM1400 Non-Autogate White FOM1600 Autogate White FOM1800 Autogate White FOM2000 Autogate

PVS31 night vision goggles is famous night vision device in world market, well accepted in military market.

Main features:
1. Design with FOV40 and FOV50 degree,
2. Standard IP65 waterproof, military recommend IP67 waterproof
3. IR and low battery indicator, strong light protection;
4. Auto function, auto shut off flip up and turn on flip down, auto shut off pod flip aside and turn on flip back;
5. Support custom manual gain control version.

Gen2+ Image intensifier tube
FOM	FOM1400+	FOM1600+	FOM1800+	FOM2000+
SNR(dB)	≥23	≥25	≥28
Resolution(lp/mm)	≥60	≥64		≥68
Gain(cd/m²/lx)	8000-12000		12000-20000
Gen3 Image intensifier tube
FOM	FOM1200+	FOM1400+	FOM1600+	FOM1800+
SNR(dB)	≥22	≥25		≥28
Resolution(lp/mm)	≥51	≥55	≥60	≥64
Gain(cd/m²/lx)	8000-20000	11000-20000		12000-20000
Electric
Battery type	CR123/AA
Voltage range	1.5-4.2V
Switch model	ON/IR/AUTO
Power	＜0.1W
Auto function	Filp up/down, flip aside
Working time	40-100H
IR illuminator	850nm 20mW
IR indicator	Yes
Optical
Magnification	1X
FOV	40±2° or 50±2°
Optical distortion	1% Max
Diopter range	±5°
Optical system	F1.18 22.5mm
Focus range(M)	0.25–∞
Eye relief	30mm
Optical MTF	120LP/mm
Structure
Focus type	Manual
IPD range	50-85mm
IPD lock type	Manual
Temperature range	-40℃~+55℃
Humidity range	5%-95%
Waterproof standard	IP65
Size	115x105x85mm(close)
Weight	480g
